Duo SSO for Proxmox

I recently migrated away from VMWare, and over to Proxmox. As part of this migration, I wanted to setup auth similar to what I had with vCenter.

Thankfully, Proxmox supported Open-ID Connect (OIDC). This is a simple guide to follow, without much fluff.

Create the Application in Duo

First, login to your Duo admin portal

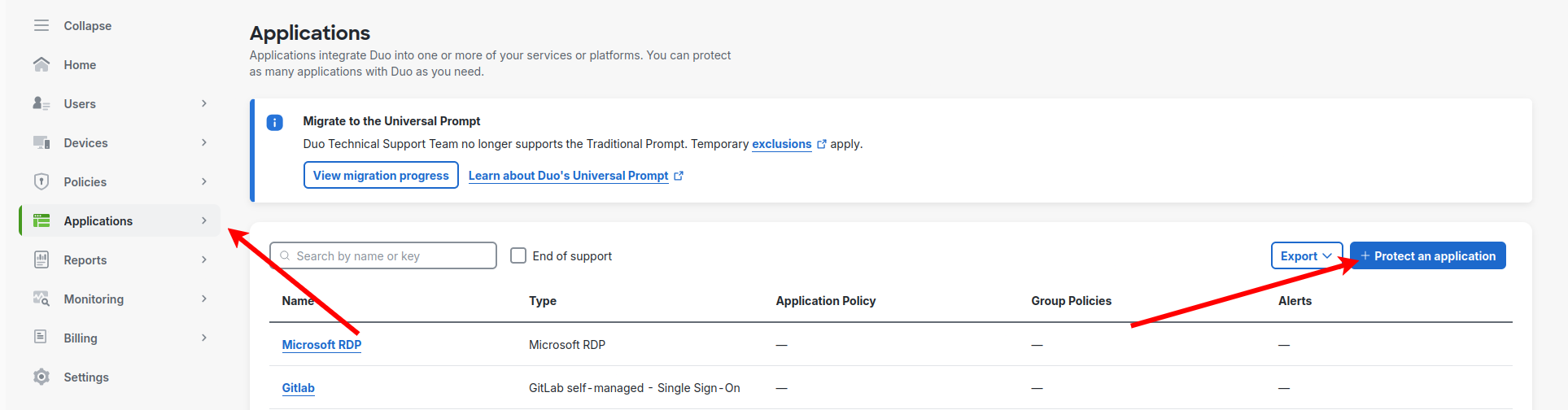

Go to the "Applications" and click "Protect and Application".

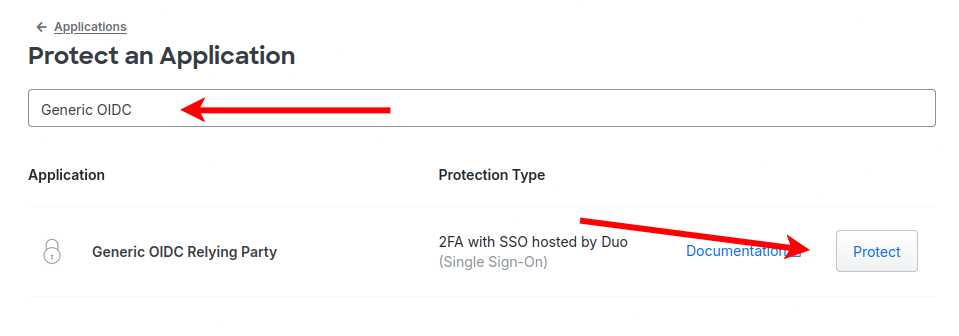

Search for "Generic OIDC" and click "Protect" on "Generic OIDC Relaying Party".

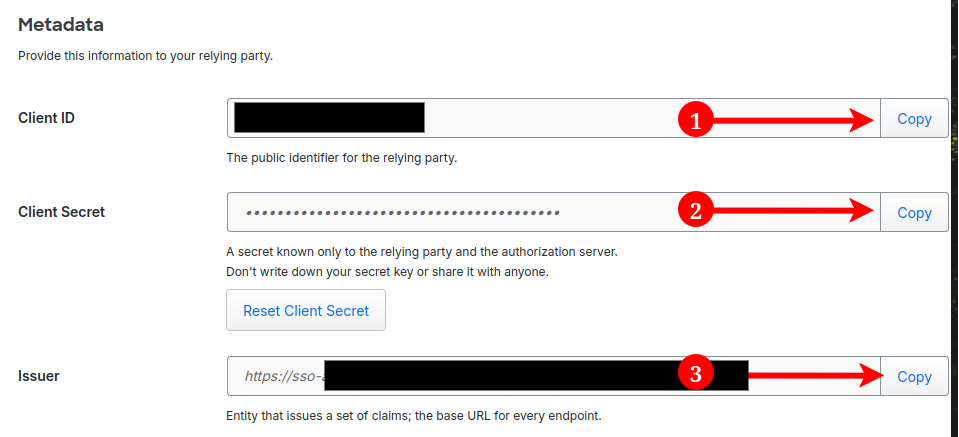

Copy your Client ID, Client Secret, and Issuer URL to a text file momentarily. You can alternatively just come back to these when we get to that point on Proxmox.

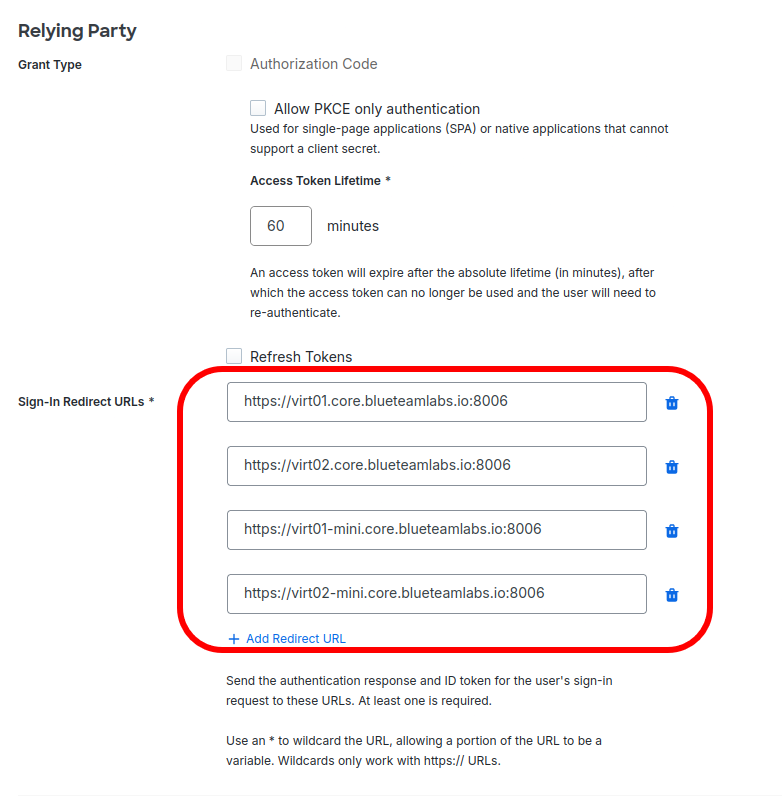

Scroll down until you find "Sign-In Redirect URLs". Here, add the URL for all of the Proxmox instances you want to be able to login with OIDC on.

These should be in https://<fqdn>:8006 format.

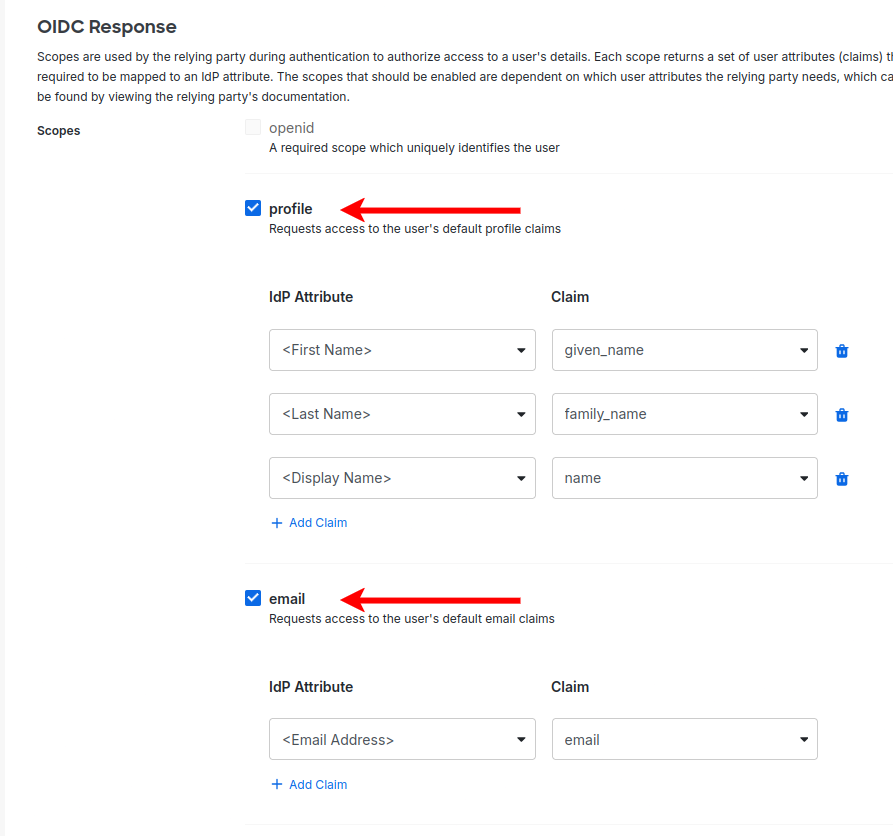

Scroll down to OIDC Response, and check the boxes for "profile" and "email" under "Scopes".

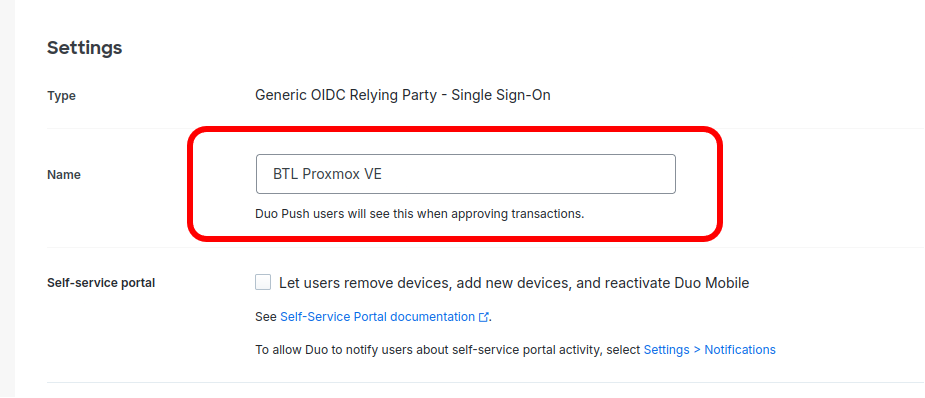

Next, scroll down and give it a name.

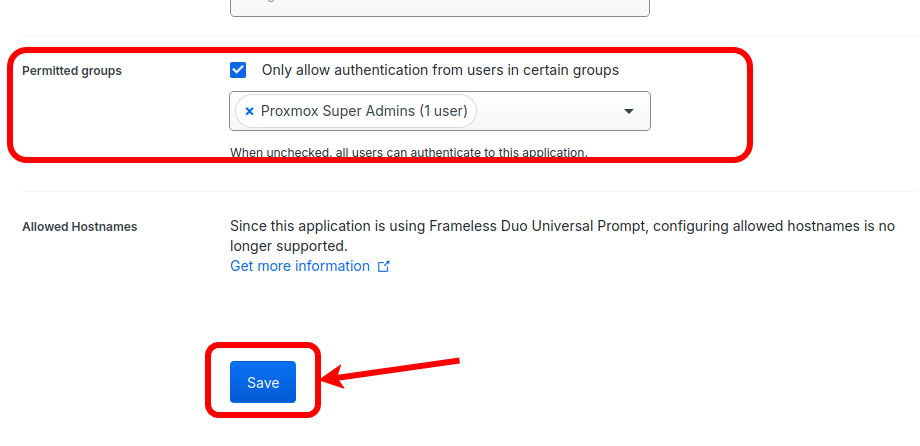

I would highly recommend restricting this to a specific group of users that can authenticate to this app. For myself, I'm using the group Proxmox Super Admins. Lastly, click "Save"

Warning

Please be sure to click save. If you don't click save the Application isn't created and you won't be able to use it.

Register OIDC Realm in Proxmox

Login to your Proxmox server.

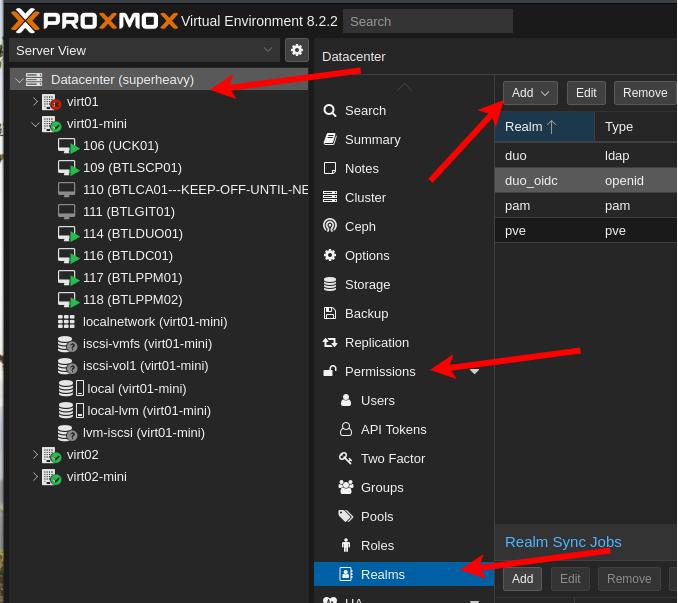

Select the "Datacenter" and locate the "Permissions" section and expand it. Next, go to "Realms" and click Add. In the drop-down, select "Open ID Connect Server".

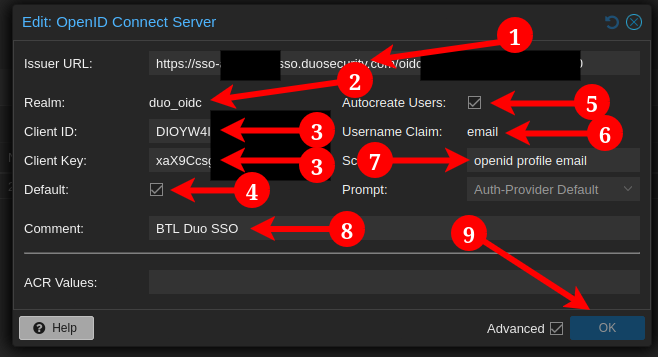

Enter the Issuer URL we copied earlier. You can revisit your application in Duo if needed.

Under "Realm:" give it a name. For me, I selected duo_oidc

Enter the Client ID and Client Key we copied earlier. Reference your Duo application if required.

Check "Default:" if you want this to be the default login method.

Check "Autocreate Users:" if you want--you do still have too provision permissions manually.

For the "Username Claim:" Select "email"

For "Scopes:" enter openid profile email

In "Comment:", enter a friendly name that'll be displayed when logging in. I chose BTL Duo SSO.

Click "OK" to save.

Create a Group, Assigning Permissions, and Adding the User

Create the Group

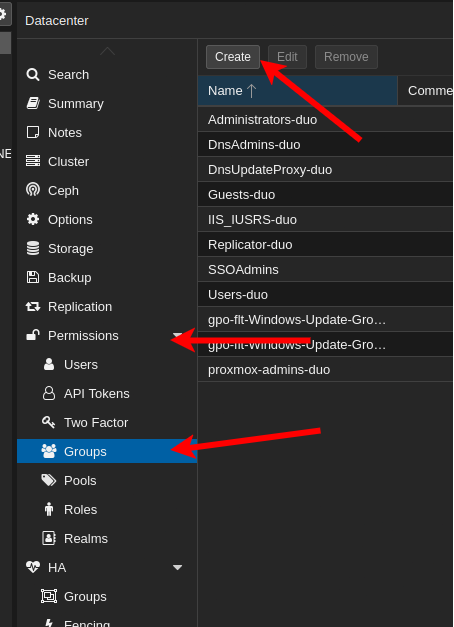

Select the "Datacenter" and locate the "Permissions" section and expand it. Next, go to "Groups" and click Create.

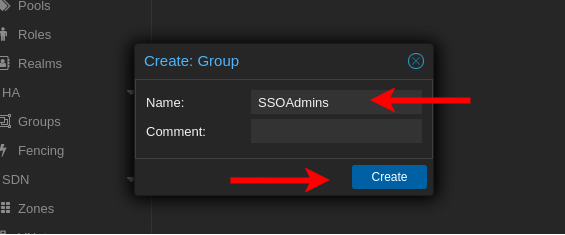

In the popup, enter a name for the group. This is the group we're using to control permissions for SSO users.

I selected SSOAdmins. Click "Create" to save.

Assign Permissions

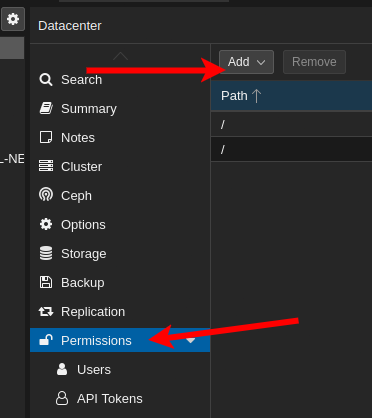

Click on "Permissions" and click "Add". Select "Group Permissions" from the drop-down.

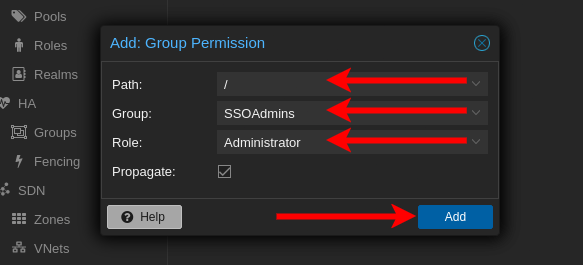

Select / as the Path. This will provide full permissions for the entire datacenter.

Next, select the Group we created earlier, SSOAdmins

For role, select "Administrator" and click "Add" to save.

Pre-Create our First User

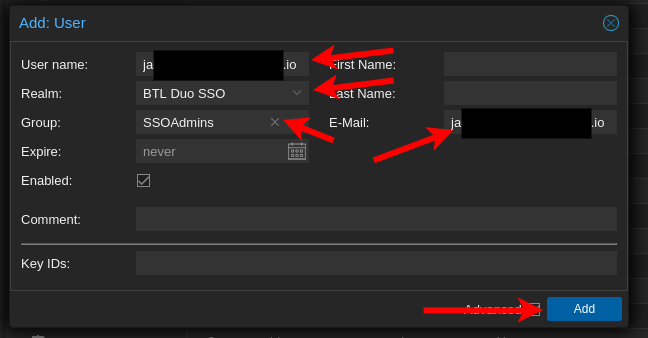

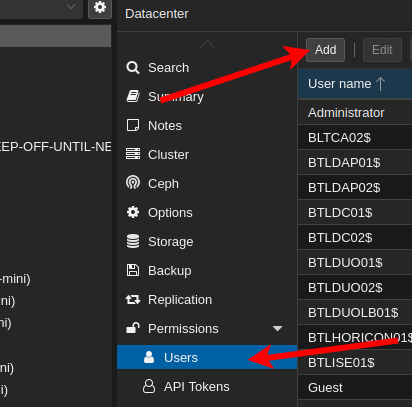

Click on "Permissions", locate "Users" and click "Add".

Enter the email as the username. For Realm Select the OIDC realm we created earlier, BTL Duo SSO.

For the "Group", enter the group name we created earlier, SSOAdmins Lastly, enter the email again in the "E-Mail" field and click "Add"

Note

Unless I'm missing something, which I might be, you will need to manually add users to groups even when they're auto-created. I'm not sure of a way to add users to groups dynamically through OIDC, though I do imagine there is some possibility of it.

This step saves us a step of having to logout, log back in as root, assign permissions, logout, and log back in as our SSO user to test things again.

Testing Login

Logout or open a private-browsing Window and open your Proxmox Server

On the login page, if you didn't select the new Realm as default, select it from the drop-down and click "Login (OpenID redirect)"

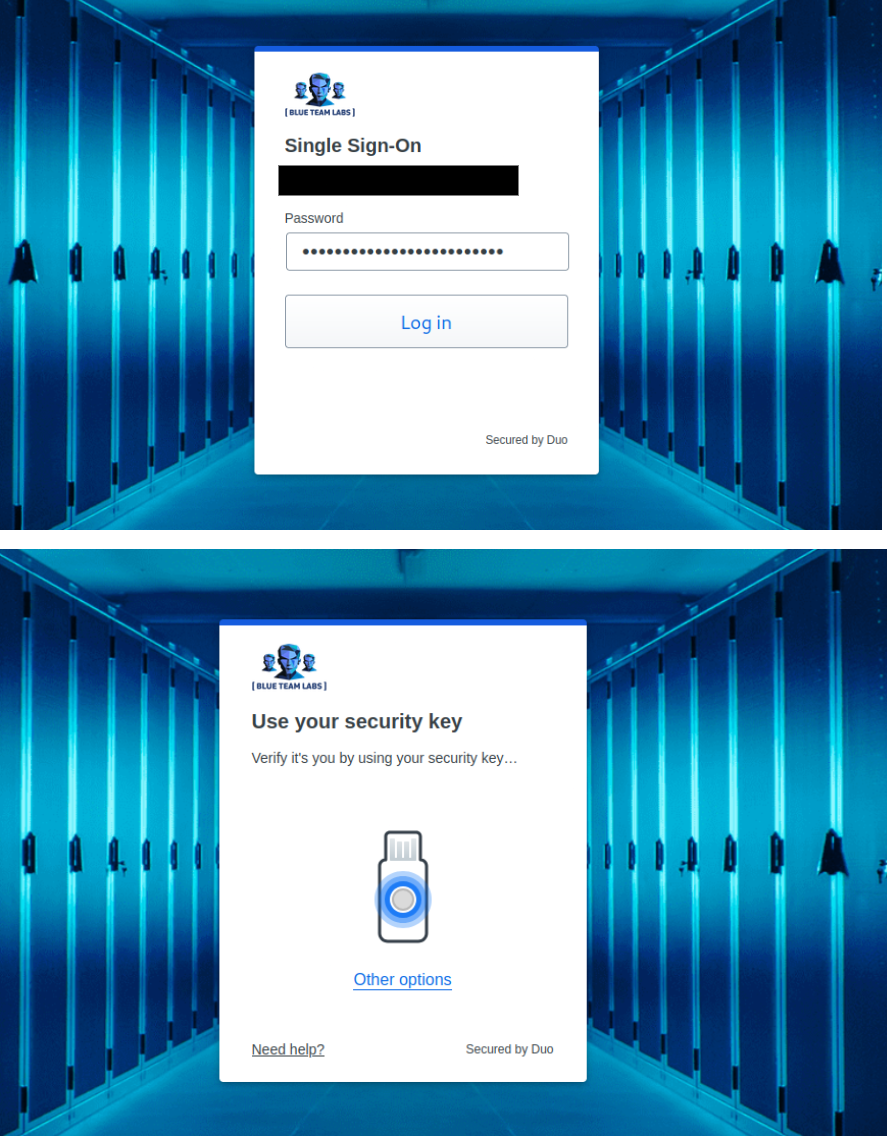

Follow the login flow for Duo that you have configured.

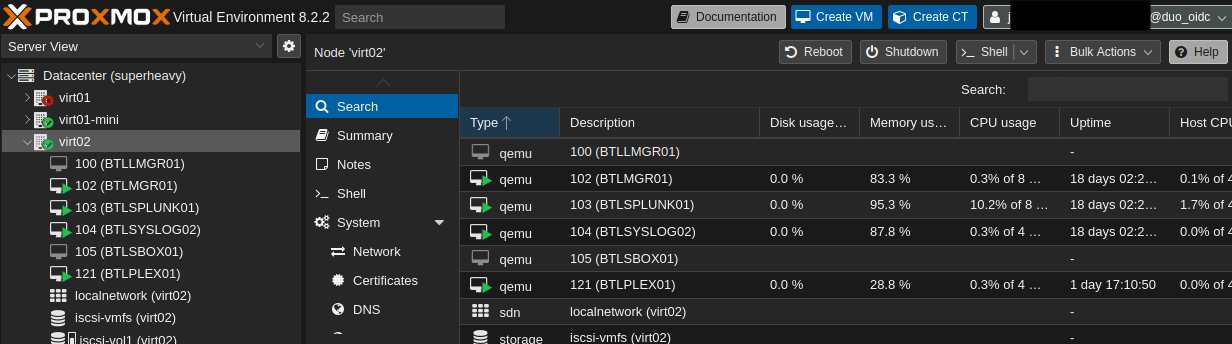

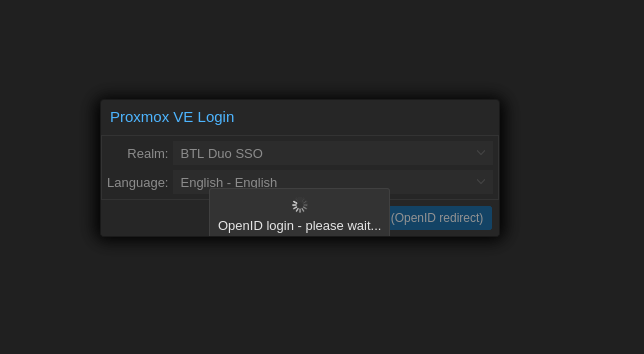

At the end, you'll see a brief loading window before being thrown to the main Proxmox UI.

After login, expand some of the panes and validate your permissions loaded properly. If you are able to see everything you can as your non-SSO user, you should be all set.

Thoughts on Permissions

I played around with custom claims and different ways of creating users and what I found is that the only way to assign a user permissions is to manually assign them. Some quick SearXNG searches and combing through reddit threads confirmed this as well, I would imagine its possible somehow, but I haven't figured it out, and noone else has either; atleast not that they've shared.

I guess we're just stuck having to manually assign users to groups--atleast it auto-creates the users for us though.
