Forwarding iDRAC Logs to Splunk with syslog-ng
I'm a firm believer in centralized logging of everything. If it supports sending some sort of log stream to a remote location, it should be getting sent there. In my case, my lab utilizes Splunk through the developer license.
As of today, all of my logs for Windows, Linux, Firewalls, Duo, and a few other random things are in Splunk.
I actually realized I wasn't forwarding the logs when I went to update my iDRAC controller and BIOS firmware. It's been a while since I did that, so while I was in there I was validating all my other settings were as expected and realized syslog was not configured.
What is iDRAC?
I would assume most would know this, but perhaps theres some out there who haven't had the opportunity to play with Enterprise hardware. iDRAC stands for Integrated Dell Remote Access Controller. It's a hardware device that allows you remote access to the serve for managing it anywhere on the network you so desire.
With iDRAC you can:
- Access a virtual console for interacting with the OS
- Manage BIOS settings and configurations remotely
- Monitor general hardware and disk health
- Control power and thermal profiles
- Remotely update iDRAC and BIOS firmware
- Many other things not listed
iDRAC is a web-based application with components that use Java, VNC, and other app frameworks for things like the remote virtual console.
Setting up syslog-ng
My Splunk setup consists of one search head and one forwarder. My forwarder operates on a dedicated machine given the name syslog.core.blueteamlabs.io. Rather than utilizing Splunk for managing the inputs for syslog itself, I utilize syslog-ng.
This is really a preference, and it also gives me the ability to ensure that even if I need to take the main search head offline, logs are still stored somewhere in the meantime and are forwarded once its back online. It also enables me to use Ansible for managing the configurations, which is my preference.
While updating my iDRAC and BIOS firmware, I logged into my syslog server and created a new configuration for iDRAC logs.
/etc/syslog-ng/conf.d/05-syslog-idrac.conf
source s_udp2514 {
network(
transport("udp")
port(2514)
flags(no-parse)
);
};
# Destinations for UDP Sources
destination d_udp2514 { file("/syslog/udp2514.log" template("${ISODATE} ${HOST} ${MSG}\n")); };
# Map Sources to Destinations
log { source(s_udp2514); destination(d_udp2514); };
source s_udp2514 section. We're setting the transport to udp, as I have yet to go through the motions of configuring encrypting TCP syslog. For the port, we're selecting the port 2514. Under the flags, we're telling it not to pre-parse the logs. This prevents syslog-ng from applying any parsers that might interfere with Splunk.
Whether you use UDP or TCP depends on what the source application supports and what you have setup. I would recommend setting up encrypted syslog, but I'm a bit hyprocritical here as even I haven't set that up yet. One thing at a time.
Under the destinatiosn section, defined by destination d_udp2514 we're pointing it to an file at /syslog/udp2514.log which is a directory my Splunk service account has read access to. When it ingests a message, it'll write the message to a newline, as defined in the template section.
Through the message template, we're appending the ISO timestamp for when the log was received and the source host that sent the message. I originally did not include this until after reviewing the log entries in Splunk and noticing there was no way to attribute source to the logs, which could be problematic.
This is done by {$ISODATE} and ${HOST} in ...template("${ISODATE} ${HOST} ${MSG}\n")); };
Lastly, we're mapping the input to the output file in the log section. This just ties the two together so syslog-ng knows where to write the logs.
After setting up syslog-ng, we'll go ahead and restart it
sudo systemctl daemon-reload
sudo systemctl restart syslog-ng
netstat.
netstat -oan | grep 2514
From the output of netstat, we can see that udp/2514 is bound and should be able to receive traffic now. I don't use the term "listening" as UDP is connectionless so "bound" or "open" is a more appropriate term.
Configuring iDRAC Settings
To setup iDRAC for remote syslog, we'll have to do two things:
- Configure the remote syslog server
- Configure the alert and event types to be logged
Setting Syslog Server on iDRAC

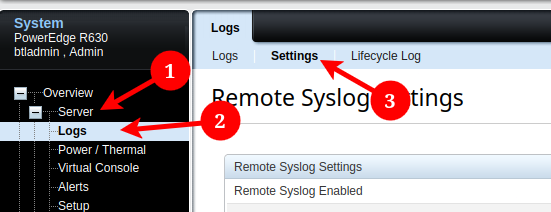

iDRAC settings can be configured by going to "Server" --> "Logs" --> "Settings".

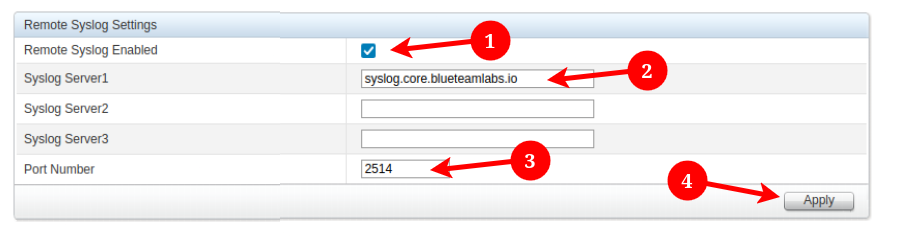

Next, we'll set our syslog server settings. First, check "Remote Syslog Enabled", then set the "Syslog Server1" to your syslog server, in my instance syslog.core.blueteamlabs.io.
Third, we'll set the "Port Number" to the one we configured on syslog-ng, 2514. Last, we'll click "Apply"
Configuring iDRAC System Log Types

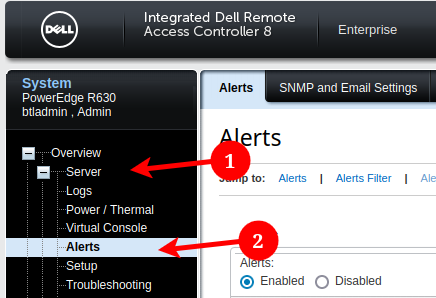

To configure this, we'll head over to the "Server" --> "Alerts" page. Here we'll be modifying the enabling Alerts and managing settings under the "Alerts and Remote System Log Confgiguration" settings

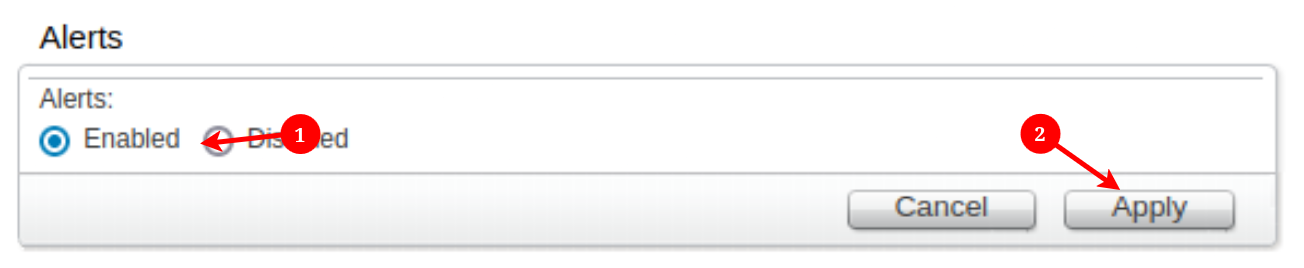

At the to of the page, if Alerts are not already enabled, go ahead and toggle that to "Enabled" and click Apply.

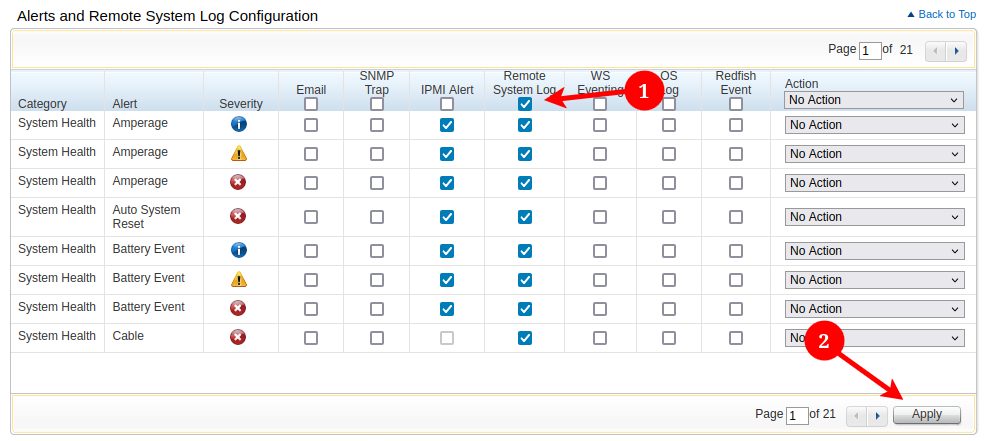

Under the "Alerts and Remote System Log Configuration", there are hundreds of event types and alerts we can configure. To simplify things, we'll just start by sending them all to our remote syslog server.
To do this, we'll just click the checkbox in the header row for "Remote System Log" and click "Apply".
Do this on EVERY Page
You'll want to paginate through all the pages using the arrow buttons next to the apply button. Dell is perhaps the actual worst at UX/UI design and when you select all, it only selects all visible.
Log Verbosity
How verbose you want to go depends on what you're using the logs for. If you're using the for operational data, it might be helpful to have power utilization and detailed hardware logs. If you're only using them for security, you may want to limit it to audit and login events.
I'm starting with everything and may pull things back if it's not useful.
Verify Log Ingest
There's a coupt of methods we can use to verify log input. In my instance I want to verify two things:
- The traffic is reaching the server over
udp/2514 - Syslog-ng is logging the traffic to
/syslog/udp2514.log
Validating Traffic is Reaching the Server
For this, we'll just run a quick tcpdump on the server. I know you're probably thinking "tcpdump? I thought this was UDP?" Well, tcpdump is just the name of the tool. Its fully capable of dumping all traffic regardless of protocol.
To do so we'll use the following command

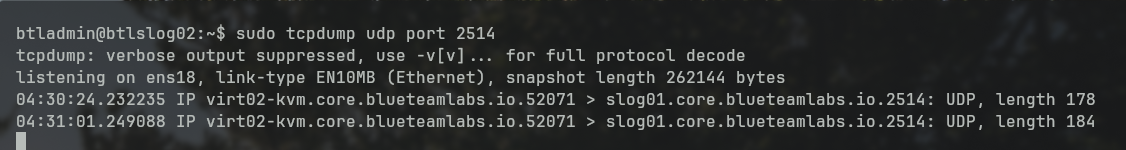

sudo tcpdump udp port 2514
2514 as we don't want to fill our shell buffer with a ton of uninteresting traffic that we have to sift through.
What we want to do next is trigger an event that would send that data to the syslog server. We can test using the "Test Event" or we can manually do something that would trigger it. For me, I tested a few of the IDs I was able to find with a quick google search but wasn't able to get it working.
Instead, I just went over to the "Virtual Console" page and hit apply. This sent a few messages over to the syslog server.
As we can see, we are receiving the logs on the syslog server. Next, we'll just need to check the logfile.
Checking if the logs are Written
The next thing we'll do is check to see if the logs are written to /syslog/udp2514.log

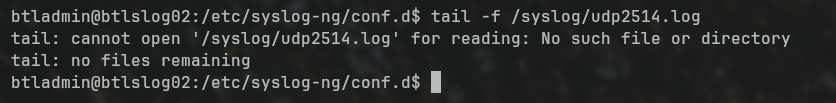

By running tail -f /syslog/udp2514.log we can see that theres something wrong. The file doesn't exist, which means that somethings wrong with the ingest for syslog-ng.
I do run uncomplicated firewall installed (UFW) on all my machines and filter all traffic except that which I have validated is required. I suspect this is getting dropped by UFW. To verify this we'll check the UFW logs.

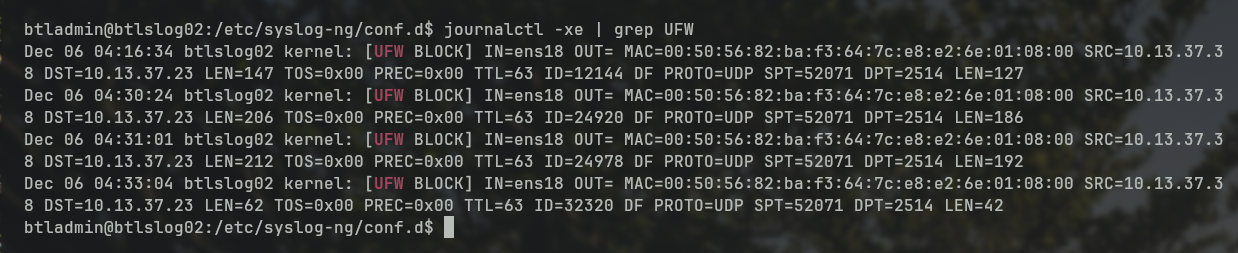

To check the UFW logs, we'll check the journal log. This can be done with journalctl -xe | grep UFW
As we can see from these logs, we are blocking that traffic.
To add this too UFW, we'll just add the followingg rule:
sudo ufw allow from any proto udp to any port 2514
This just allows inbound traffic on udp/2514 from any address. I don't get specific on UFW, just use it for managing attack service of accessible services on the local network.
Next, we'll go back and generate some syslog alerts from iDRAC again by just modifying the power configuration to "Not redundant". I would recommend waiting too run the tail command until after you've generated the traffic, because it will be created on first write.

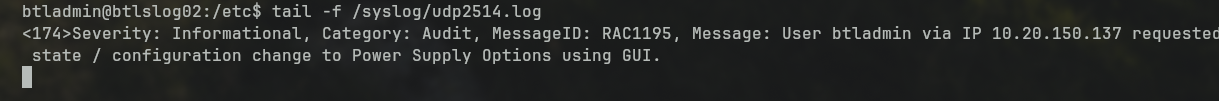

After running tail -f /syslog/udp2514.log again, we're seeing the logs written to disk. The next thing we'll need to do is configure the Splunk forwarder to send them.
Log Format
What we're actually seeing here bodes well for when we create ingest actions. Things appear to be delimited in a common way that we can atleast get into a searchable index. It might not be as verbose as we would like, but it'll do.
Configuring Splunk Forwarder
To configure the Splunk forwarder, we'll want to
- Create the new index on our Splunk Server
- Modify the
/opt/splunkforwarder/etc/system/local/inputs.conffile to read the log file from syslog-ng.
Splunk Deployment Server
You can also do some of this from the Splunk Deployment Server. I haven't got around to setting that up in the lab, and I would assume most non-enterprise users haven't either. I rely heavily on Ansible for everything in my environment, so I often don't mess with specific things like this which I can accomplish via Ansible just as easily.

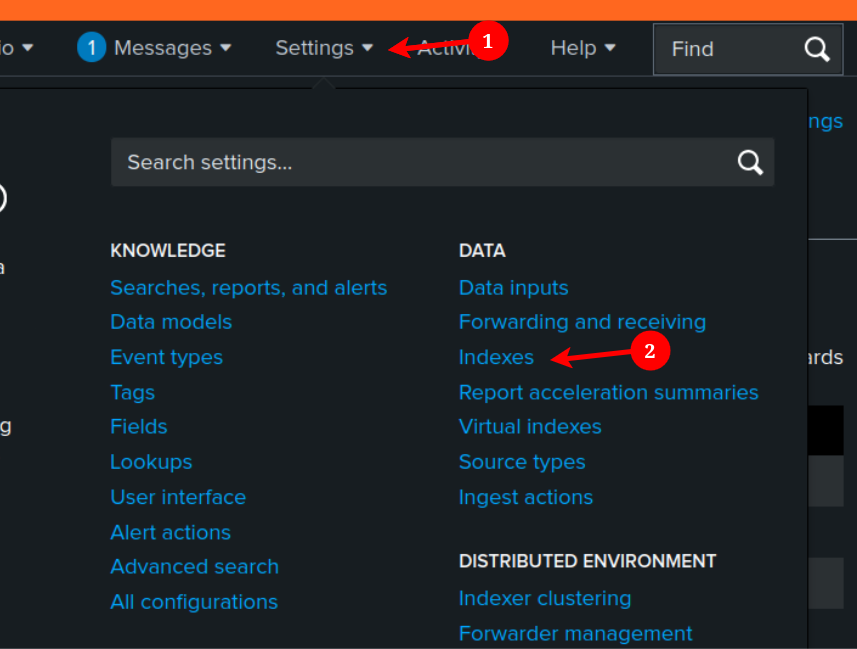

To create the index, log into Splunk and go to "Settings" --> "Indexes"

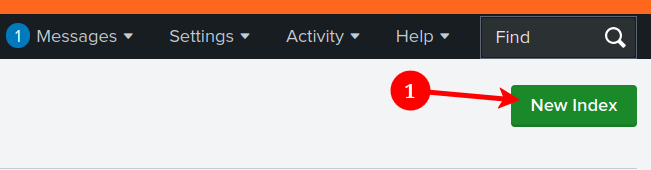

Click the button "New Index"

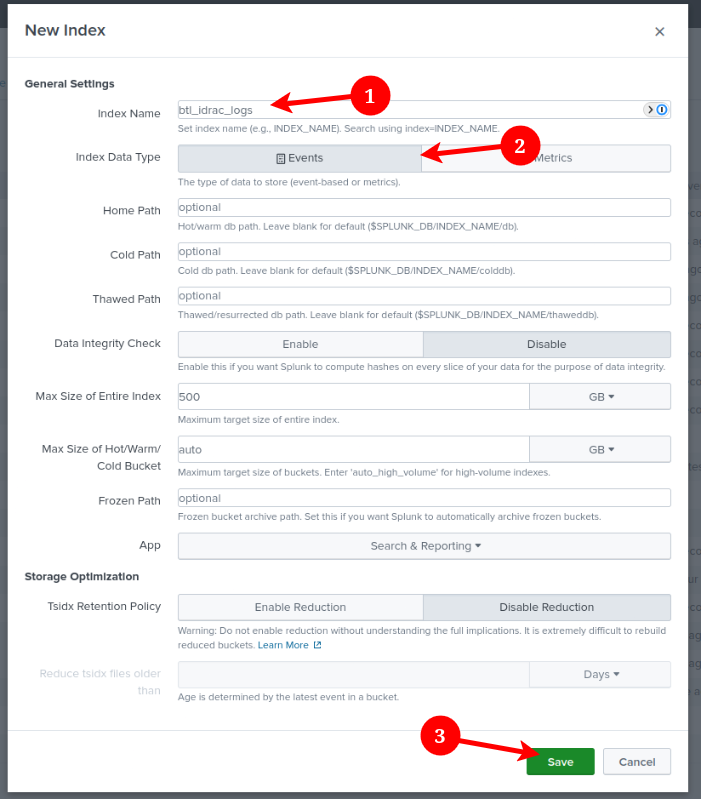

In the pop-up, enter your "Index Name", in my instance btl_idrac_logs. Ensure that the "Index Data Type" is set to "Events". You can optionally change any of the other settings to fit your needs, but the defaults are fine for me right now.
Lastly, click "Save".

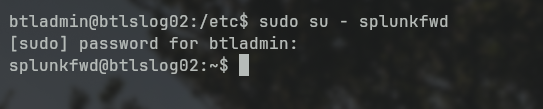

With that done, heave back on over too the Splunk forwarder. For this process I think it's best that we impersonate the splunkfwd user as this is what the Splunk forwarder service runs under.
To do so, just type
sudo su - splunkfwd
Once you see splunkfwd@<hostname> you're acting as the splunkfwd user and can continue on. You could do this as root or through sudo, but it might cause issues with permissions, so impersonating is the best bet.
Next, we'll need modify the /opt/splunkforwarder/etc/system/local/inputs.conf. You can use your text editor of choice. To keep it accessible, I'll just use nano since not everyone knows how to exit vi in 2024 because they apparently have better things to do.
nano etc/system/local/inputs.conf
At the top of your file, add a new section for the log file we are writing with syslog-ng. Here is what mine will look like.
[monitor:///syslog/udp2514.log]
sourcetype = dell:log
index = btl_idrac_logs
/syslog/udp2514.log file entries, via the [[monitor://]] section. We're then telling Splunk to index these in btl_idrac_logs via the index key. To aid in finding the logs, we're also telling it to set the sourcetype as dell:log via the sourcetype key.
Save the file using Ctrl+X and hit Y when it asks you to save. Lastly, hit Enter to confirm and close the file.
Next, we'll need too restart the splunkd daemon. To do this just run

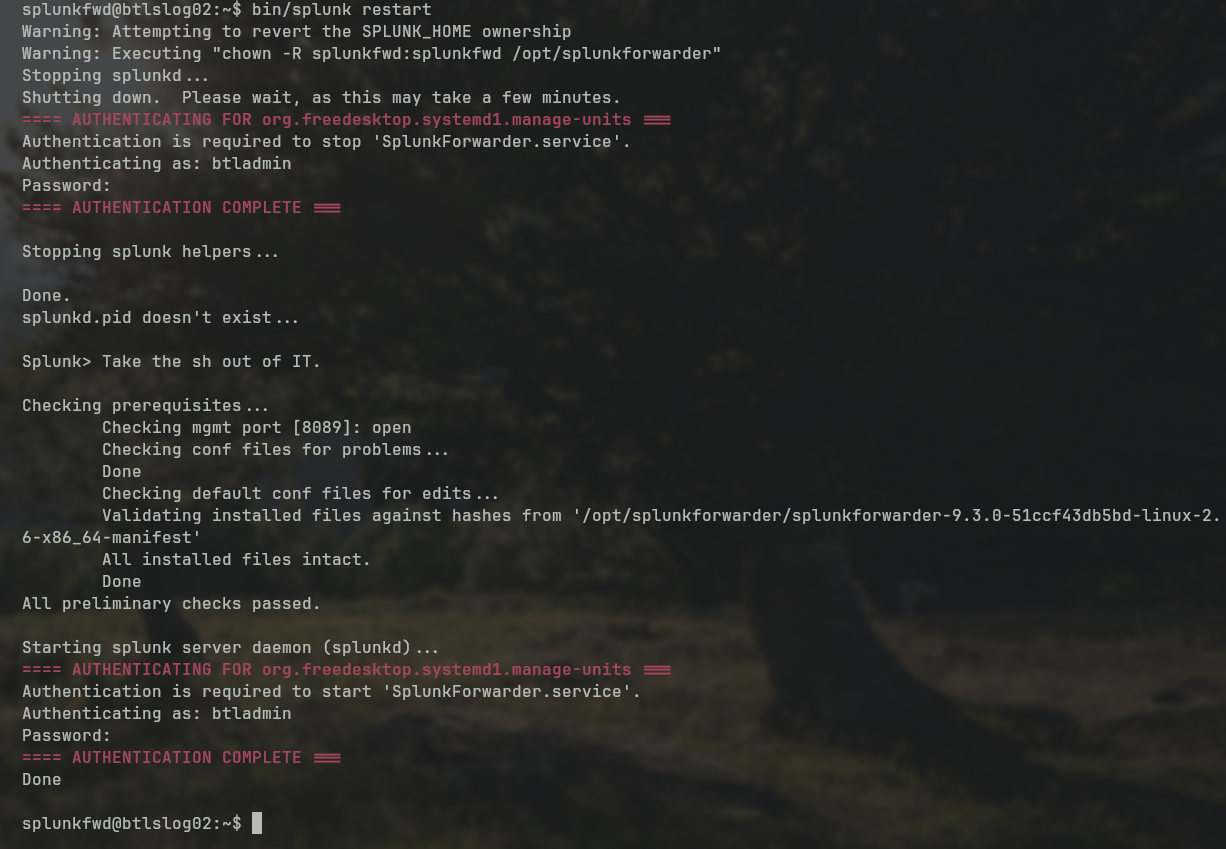

bin/splunk restart
It'll ask you for a sudo password a few times, and restart when complete. Your logs should now be getting sent to your Splunk server.
Verifying Logs in Splunk
Lastly, we'll verify our logs are actually being indexed. We won't cover creating any ingest actions or extractions in this post, I'll save that for another more complex one with a greater learning opporitunity.
Generate Logs
What you'll want to do next is go generate some events in your iDRAC controller as Splunk won't ingest whatever exists when you add it to the monitor. You'll need some new events for it to pull in.

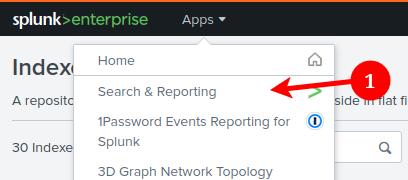

Login to your Splunk search head and go to "Search and Reporting".

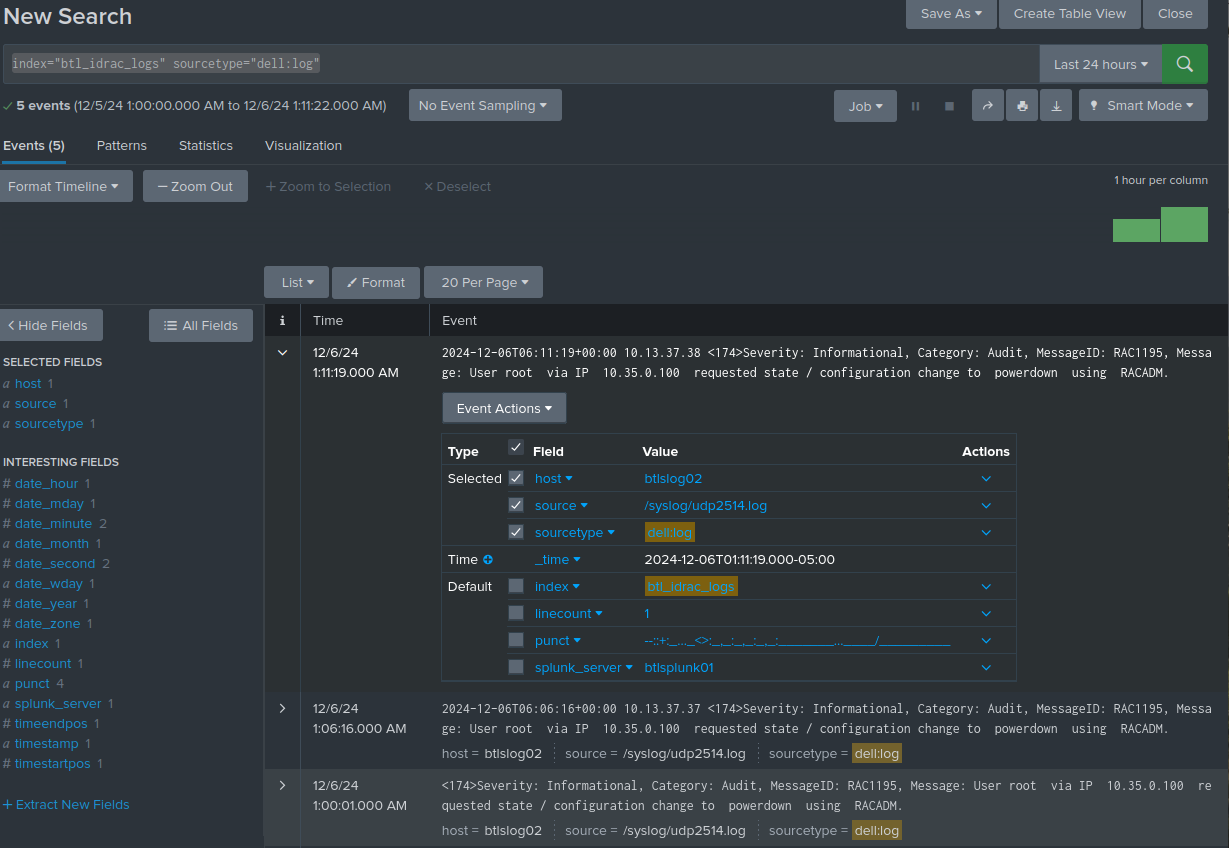

In the search bar, enter the query index="btl_idrac_logs" sourcetype="dell:log". Obviously change the index name if you selected something different.
If all goes well, you should see some logs in there. You'll see the colon-delimited fields aren't indexed indivudally. You'll have to create extractions for that, but I won't cover that in this post as it's already long enough and it's easy to ask ChatJipitee.
Congrats!
Congrats, you just ingested more logs in your hunt to become the next large surveillance provider. You're making our frenemies over at the NSA, NRO, DIA, and CIA very happy!
